Sound Insulation in Buildings: Airborne Sound, Impact Sound and Common Design Failures
A separating wall can have an impressive specification and still provide disappointing sound insulation once it forms part of a completed building. The wall is only one part of the transmission system. Floor junctions, façade cavities, structural connections, penetrations and workmanship can all change performance in use.
Effective design starts by identifying the sound source, transmission path and receiving space. It then requires a clear distinction between laboratory product data and field measurements. Kimber Acoustics, led by Robert Kimber MIOA, supports project teams with this assessment, design coordination and verification.
What Sound Insulation Has to Control
Airborne Sound
Airborne sound begins with a source that sets the surrounding air in motion. Speech, television audio, music, road traffic and building services are familiar examples. The resulting pressure waves reach a wall, floor, roof or façade and cause parts of that construction to vibrate.
Some of the sound energy is reflected, some is absorbed and some passes into the adjoining space. The amount transmitted depends on frequency as well as the complete construction. A partition that controls speech effectively may perform differently against bass-heavy music or transport noise.
Impact and Structure-Borne Sound
Impact sound begins with direct contact between an object and the building. Footsteps, dropped objects, moving furniture and activity on stairs introduce energy into a floor or another structural element.
That energy travels through the structure before being radiated as audible sound elsewhere. This explains why adding a soft finish can improve one impact route while leaving transmission through rigid junctions largely unchanged.
The distinction matters in residential buildings because airborne and impact sound require different measurements and design responses. A project team considering Residential Acoustic Design & Noise Assessment should define both requirements wherever separating floors, stairs or adjoining dwellings are involved.

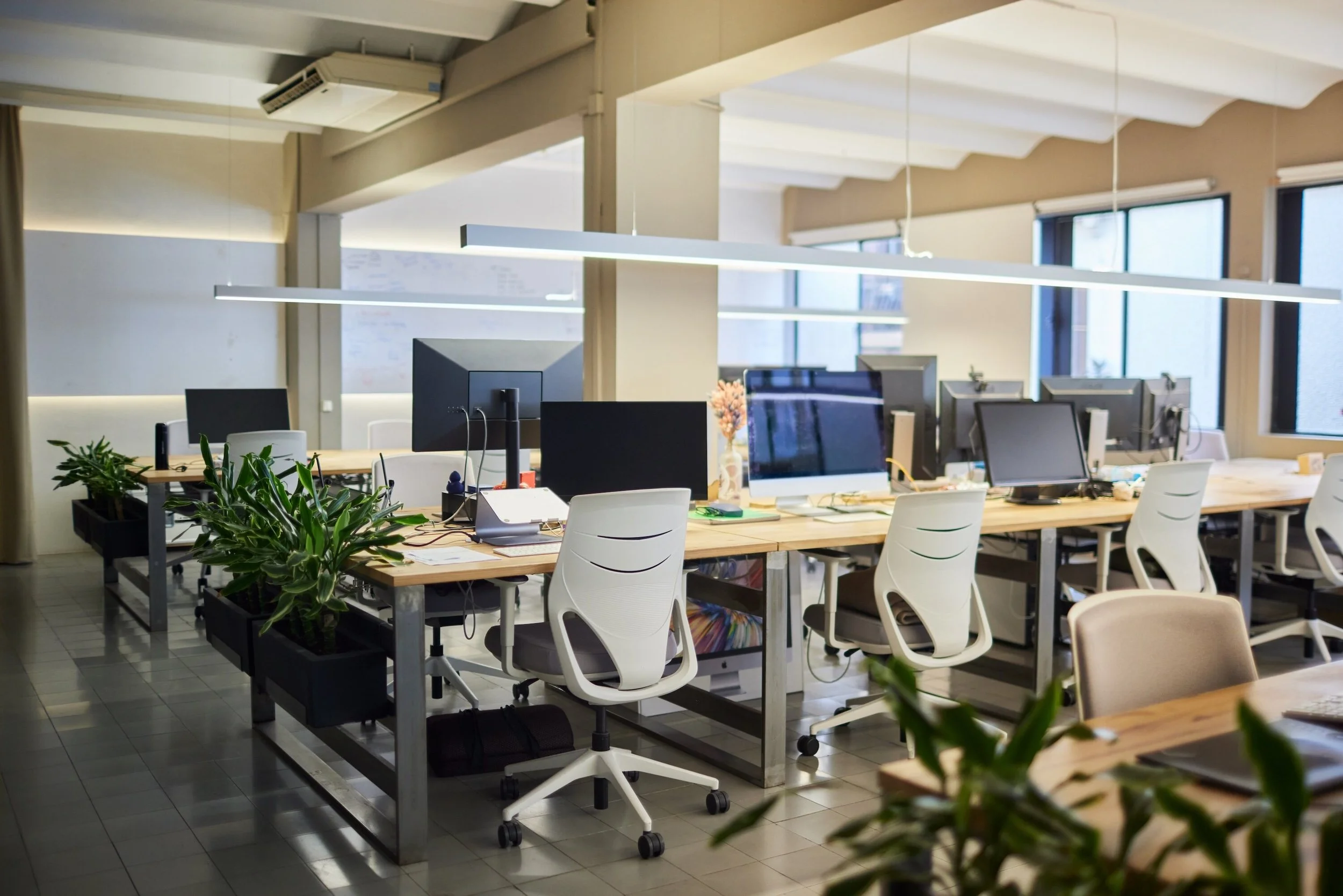

A modern open plan office with long shared desks, monitors, and greenery, the kind of dense, open layout where airborne sound and poor acoustic separation can quickly affect concentration and comfort.
Sound Insulation and Sound Absorption
Sound insulation controls transmission between spaces. Sound absorption controls reflected energy within a space and usually affects reverberation.
Porous wall panels may reduce echo in a meeting room while producing little change in the sound heard next door. Absorbent material inside a partition cavity serves another purpose. It helps control sound energy within the cavity as part of the wall or floor construction.
This distinction prevents a common purchasing mistake. A product described as “acoustic” may be intended for room absorption, cavity treatment, impact isolation or airborne sound reduction. The required function should be established before a material is selected.
Reading Sound Insulation Ratings Correctly
Laboratory Tests Examine a Building Element
Laboratory testing allows walls, floors, doors, glazing and other elements to be compared under controlled conditions. BS EN ISO 10140-2:2021 (knowledge.bsigroup.com) specifies a laboratory method for airborne sound insulation.
The test facility is arranged to suppress transmission around the specimen. This concentrates the measurement on the element and its tested mounting arrangement. The result can support product comparison and design calculations.
Laboratory data remains specific to the tested build-up. Changes to dimensions, fixings, joints, frames, seals or surrounding construction may affect the result.
Field Measurements Examine Completed Rooms
Field testing measures performance between rooms within the completed building. BS EN ISO 16283-1:2014+A1:2017 (knowledge.bsigroup.com) specifies procedures for measuring airborne sound insulation between rooms.
The measurement takes place with the actual junctions, finishes and dimensions present. The result therefore describes the built arrangement tested rather than an isolated product.
Impact sound is assessed separately. BS EN ISO 16283-2:2020 (knowledge.bsigroup.com) covers field measurements using an impact source on a floor or stair.
The Common Single-Number Ratings
Frequency-dependent test results are often converted into single-number ratings so that specifications and regulatory criteria remain workable.
| Rating | Typical Context | How to Read It |
|---|---|---|
| Rw | Laboratory airborne sound insulation rating for an element | A higher value indicates greater airborne sound reduction under the test arrangement |
| DnT,w | Field airborne sound insulation quantity between spaces | A higher value indicates stronger measured separation |
| DnT,w + Ctr | Field airborne result with a spectrum adaptation term | A higher value indicates stronger performance against the assessed spectrum |
| L'nT,w | Field impact sound level in the receiving space | A lower value indicates less transmitted impact sound |
BS EN ISO 717-1:2020 (knowledge.bsigroup.com) defines rating methods for airborne sound insulation. BS EN ISO 717-2:2020 (knowledge.bsigroup.com) performs the corresponding role for impact sound.
Why Ctr Can Change the Interpretation
A single headline value can conceal uneven frequency performance. The Ctr spectrum adaptation term gives greater relevance to noise with substantial low-frequency content, such as some road traffic and urban sources.
A partition may control higher-frequency speech effectively while allowing more low-frequency energy through. In that situation, Ctr can be negative and the combined DnT,w + Ctr value will be lower than DnT,w alone.
The source spectrum should therefore influence the specification. Selecting a construction from an Rw figure without reviewing the frequency data or relevant adaptation term can create an avoidable gap between the design assumption and the occupant’s experience.
Flanking Transmission: The Primary Failure Mechanism
How Sound Bypasses the Separating Element
Flanking transmission is the primary failure mechanism when sound bypasses the intended separating element through connected construction.
Common paths include continuous floorboards, shared external cavity walls, beams, columns, façades, ceilings and service zones. Each of these paths can carry sound around an otherwise well-insulated wall or floor, which is why assessment and mitigation of flanking transmission belongs in the design stage rather than the completion stage.
Flanking performance depends on the junction between elements. The separating wall may meet its product specification while the wall-to-floor connection creates an easier route into the adjoining space.
Structural Continuity Changes the Result
Rigid connections transmit vibration. A steel beam passing through adjoining rooms, a continuous lightweight façade or a screed bridging an isolation layer can connect spaces that the acoustic design intended to separate.
The same issue occurs when a partition stops at a suspended ceiling while the shared void continues above it. Sound reaches the plenum, crosses the partition line and returns through the ceiling in the next room.
Flanking transmission is significant enough to have its own measurement standards. The BS EN ISO 10848 series (knowledge.bsigroup.com) characterises transmission through adjoining building components.
Details That Deserve an Early Review
Drawings and site inspections should check the following interfaces:
Separating partitions should continue to the structural deck or soffit where the design requires full-height separation.
Perimeter seals should remain continuous around walls, floors, ceilings and façade interfaces.
Electrical boxes, ducts and pipe penetrations should follow the tested or assessed detail.
Floating floors should remain isolated from walls, skirtings, thresholds and service penetrations.
Resilient bars and acoustic hangers should avoid fixings that create rigid bridges.
Cavity barriers and fire-stopping should satisfy their safety function while retaining the intended acoustic separation.
Small departures can connect construction layers that were intended to move independently. Once finishes conceal the junction, investigation and remedial work become more disruptive.
Designing an Effective Sound Insulation System
Mass and Airtightness
Increasing surface mass can reduce airborne sound transmission because a heavier element is harder for sound pressure to excite. The benefit varies with frequency and the wider construction.
A heavy wall still needs suitable joints and seals. Narrow gaps around the perimeter or an unsealed service opening can create a direct air path. Sound follows these openings readily, so airtightness forms part of acoustic performance.
Doors, glazing and ventilation components need the same attention. Their frames, seals and installation conditions affect the result achieved by the complete assembly.
Separation and Resilient Connections
Decoupling reduces direct mechanical connection between the two faces of a wall, floor or ceiling. Independent studs, resilient bars, acoustic hangers and floating layers are examples of this principle.
The resilient element needs room to function. Excessive fixings, debris within a cavity or a rigid board connection can bypass it. A nominally high-performing system may then behave more like a directly connected construction.
Buildability matters here. A detail that relies on perfect installation in a congested service zone may carry more delivery risk than a simpler construction with clear inspection points.
Cavity Absorption and Damping
Absorbent material within a cavity helps control resonance between the leaves of a lightweight partition. The material type, density, thickness and fit should suit the tested or assessed construction.
Damping reduces vibration within panels or layered components. Its contribution depends on the full system, including the board layers, framing and connections.
Mass, separation, absorption, damping and airtightness work together. Product selection should follow the required mechanism. Adding a single board or roll of insulation without addressing the dominant transmission path can produce little useful improvement.
The Same System Principles Apply to Façades
Windows, Vents and Openings Influence Performance
The same system approach applies to sound insulation between outside and inside. A façade combines opaque walls, windows, doors, vents, frames, seals and junctions. Its overall sound insulation depends on the area and performance of each component.
BS EN ISO 12354-3:2017 (knowledge.bsigroup.com) provides a calculation model for estimating façade sound insulation from the performance of its elements. It also includes direct and flanking transmission.
A relatively small, acoustically weak component can govern the result. Increasing the mass of the surrounding wall may offer little benefit when glazing, trickle vents or open windows remain the dominant route.
Acoustic, Ventilation and Overheating Strategies Must Align
Closed-window façade performance only answers part of the design question. Occupants may need ventilation or an overheating mitigation route during the periods when external sound levels are highest.
For new residential buildings in England, Approved Document O guidance (gov.uk) recognises the relationship between openable windows, overheating mitigation and external noise. Acoustic attenuation can also change the free area available for ventilation.
The façade, glazing and ventilation strategy should therefore be coordinated together. A detail carried over from one development may be unsuitable when the noise source, room layout or ventilation assumptions change, as The Hidden Risk in Reusing Façade Design on Residential Schemes sets out.
Standards and Requirements Set the Criteria
Approved Document E in England
Standards and project requirements set the performance criteria and evidence route. They do not change the underlying design principles. Approved Document E (gov.uk) provides guidance on resistance to the passage of sound under the Building Regulations in England. Its scope includes dwelling-houses, flats, rooms for residential purposes and schools.
The applicable performance requirement and evidence route depend on the building type and work. New construction and material changes of use can follow different routes. The relevant national guidance should always be confirmed because Scotland, Wales and Northern Ireland have their own systems.
Pre-completion testing measures the completed separation. It supplies objective evidence for Building Control, while the final compliance decision remains with the relevant building control body.
BS 8233 and Building Noise Criteria
BS 8233:2014 remains the current published standard.
The British Standards Institution describes BS 8233:2014 (knowledge.bsigroup.com) as guidance for controlling noise in and around new buildings and refurbished buildings undergoing a change of use.
A draft revision, identified as 25/30471262 DC (knowledge.bsigroup.com), was published for comment on 6 June 2025. Until that revision is published, project documents should refer to the 2025 draft rather than to BS 8233:2025.
Applying the Correct Edition
Project criteria should state the edition being applied. The standards position should also be checked at design review and before a technical report is finalised.
BREEAM as a Project Requirement
Acoustic performance is assessed under its own BREEAM credit within the applicable scheme and technical manual. It appears as Hea 06 in the current scheme and was previously Hea 05 in BREEAM V6, so project documents should state the scheme version being applied. Its requirements can cover indoor ambient noise, sound insulation and reverberation, with criteria varying by building type and assessment route.
The BREEAM UK New Construction manual (breeam.com) refers to the BS EN ISO 16283 series for airborne and impact sound measurements. Current BREEAM knowledge-base guidance also requires a suitably qualified acoustician to be appointed at an appropriate project stage. The assessor determines what timing is appropriate for the project and procurement route.
Specialist settings bring additional room functions and operational sources into the design. A scheme in healthcare and hospital settings, for example, may need to consider privacy, rest, building services noise and clinical activity alongside the selected BREEAM criteria.
At the Sulis Hospital extension near Bath, assessment and verification covered internal noise in sensitive clinical areas, review of sound insulation and reverberation performance, and prediction of external noise impact using three-dimensional modelling. The measurements, predictions and supporting documentation gave the project team defensible evidence for the BREEAM process and showed where performance met or fell short of the relevant criteria.
Turning a Specification Into Measured Performance
Establish the Requirement Before Selecting Products
Whatever standard or scheme applies, the practical task is to translate the requirement into a buildable and verifiable construction. Start with the rooms, activities and decisions that the design must support. Identify the source room, receiving room, likely noise spectrum and sensitivity of the occupants.
A noise survey establishes representative site conditions. An acoustic assessment then considers those conditions, the proposed use and the relevant criteria. The assessment may support planning, façade design, internal layout or a compliance strategy.
Generic product ratings cannot resolve every site-specific question. Room geometry, junctions, façade composition, services and construction sequence may all change the required specification.
Coordinate the Construction Details
The design review should connect the performance target to buildable drawings. That includes separating elements, junctions, doors, glazing, ventilation, service penetrations and any resilient layers.
Laboratory data can support the choice of an element. Predictive calculations and junction reviews consider how that element is expected to behave within the building.
Robert Kimber MIOA personally reviews and scopes each Kimber Acoustics enquiry. He retains senior oversight from survey planning through assessment, reporting and final technical advice, providing direct senior input where project decisions require it.
Inspect Before the Work Is Concealed
Acoustic defects are easier to correct while the relevant junction remains visible. Inspection points should align with the construction programme, particularly before ceilings, wall linings and raised floors close access.
Useful checks include perimeter seals, board continuity, resilient connections, floor isolation and penetrations. Photographic records can support the project evidence, although photographs cannot replace measurements where testing is required.
Any change from the assessed design should be reviewed for its acoustic effect. A substitution described as equivalent for fire, thermal or structural purposes may have different acoustic properties.
Use Field Testing for the Decision It Supports
Field testing can verify sound insulation, investigate a suspected weakness or demonstrate performance against an agreed criterion. The rooms, test method and sample should match that purpose.
Testing near handover leaves limited time for investigation and repair. Earlier review and inspection can reduce that risk, while the formal test provides evidence from the completed arrangement.
Kimber Acoustics can review the project criteria, assess proposed constructions, coordinate acoustic details and define an appropriate verification scope. The resulting advice or report supports design, construction and compliance decisions. Building Control, BREEAM assessors and other authorities retain responsibility for their own determinations.
Common Design and Specification Questions
How Should a Sound Insulation Specification Be Chosen?
The best specification is the construction that controls the identified transmission path. Airborne sound may require mass, airtightness, separation and cavity absorption. Impact sound may require a resilient floor or ceiling arrangement. Junctions and penetrations can govern either result, so material choice should follow a review of the complete assembly.
Where Does Remedial Work Deliver the Most Value?
Start by identifying the dominant path. Sealing an unintended air gap or correcting a rigid bridge may provide more value than adding layers across an entire wall. Surface foam is intended mainly for room absorption. Costs rise quickly when finishes must be removed, which makes early inspection particularly useful.
Does Cavity Insulation Improve Sound Insulation?
Yes, when the insulation performs the correct function within a suitable construction. Cavity absorption can improve a lightweight wall or floor system. It cannot compensate for open gaps, weak doors or continuous structural paths. The tested build-up and installation details should guide the specification.
What Is Sound Insulation?
Sound insulation is the ability of a building element or complete construction to reduce sound transmission between spaces or between outside and inside. Airborne and impact sound are assessed separately because they enter and travel through the building in different ways.
Making Sound Insulation Verifiable
Successful sound insulation follows a continuous line from the design criterion to the completed test. Laboratory data informs the element choice. Calculations and coordination address the building around it. Inspection protects the detail, and field measurement provides evidence of performance in use.
